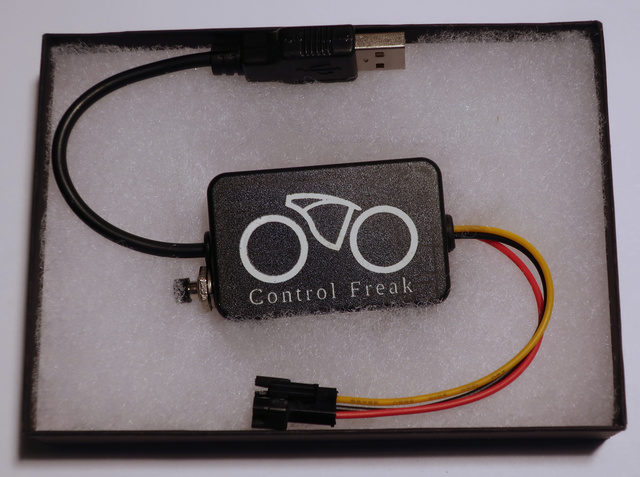

Linux Beach Control Freak (Leader) LBCF-L


An advanced controller for RGBIC LED stripes on bikes, ebikes, and other mobile applications.


Control Freak Features​​​​​

  • Can drive up to 1500 individually-addressable pixels
  • Designed specifically for bicycles and such
  • USB Type A male power in / JSM SM 3-pin male LED connector out
  • Implements WLED firmware in an advanced microcontoller
  • 180MHz. 32-bit CPU, 4MB Flash Ram,
  • 2.4GHz Wi-Fi 802.11 b/g/n enabled, WPA/WPA2 security
  • Over 100 special effects with integrated WS2812FX library
  • FastLED noise effects and 50 palettes
  • Up to 250 user presets to save and load colors/effects easily
  • Web browser User Interface with Color, Effect and Segment controls
  • Strip can be divided into Segments with different effects and colors
  • Setup, configuration, and even firmware upgrade over network
  • Both Access Point and Station mode with automatic failsafe AP
  • Multiple Control Freaks can form Wi-Fi LAN for synchronization
  • Support for NeoPixel (WS2812B, WS2811, SK6812) & RGBW LEDs
  • Presets can be used to automatically execute API calls
  • Configurable Auto Brightness limit for safer operation
  • Configurable Current Limit to prevent power-pack overloaded
  • 1000 µF buffer capacitor, 500mA resettable fuse built-in
  • Wire lead connections are O-ring sealed for weather protection

Model LBCF-L: Lead Controller, has push button for limited local control.

Weight: 2.54 oz
Dimensions: 5.5 in × 4 in × 1 in
